■ USE

◎ It is mainly used for small sized production of medium or low consistency of compound fertilizer and organic fertilizer as well as organic-inorganic fertilizer.

■ Profile of Equipment

◎ The granulation slope of this equipment can be adjusted within 40-50°. It has the charcteristics of high granulation rate, even granules, audio-visual operation, convenient maintenance, etc..

■ Main Technical parameters:

Type		HCL22	HCL25	HCL28	HCL32	HCL40	HCL45	HCL60
Dia. of granulation disc (mm)		Φ2200	Φ2500	Φ2800	Φ3200	Φ4000	Φ4500	Φ6000
Capacity (t/h)		1-1.5	1.5-2	2-3	3-4	4-5	5-6	6-10
Rotary Speed of main axle(r/min)		18	16.2	14.2	13.5	12.3	10	8.9
Slope of granulation disc (degree)		40-50				45
Granulation Percentage(%)		≥85						≥80
Motor	Type	Y132M-6	Y160M-6	Y160M-6	Y160L-6	Y180L-6	Y180L-4	Y280S-4
Motor	Power(kw)	5.5	7.5	7.5	11	15	22	75
Dimensions (L.×W.×H.) (mm)		2530 ×2100 ×2800	2630 ×2600 ×2800	2850 ×3020 ×3110	3600 ×3030 ×3310	4500 ×3300 ×4000	5100 ×3700 ×4400	6400 ×500 ×6000

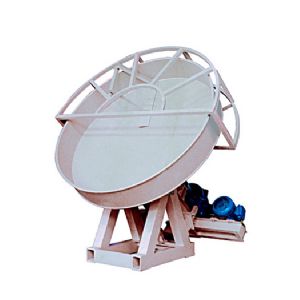

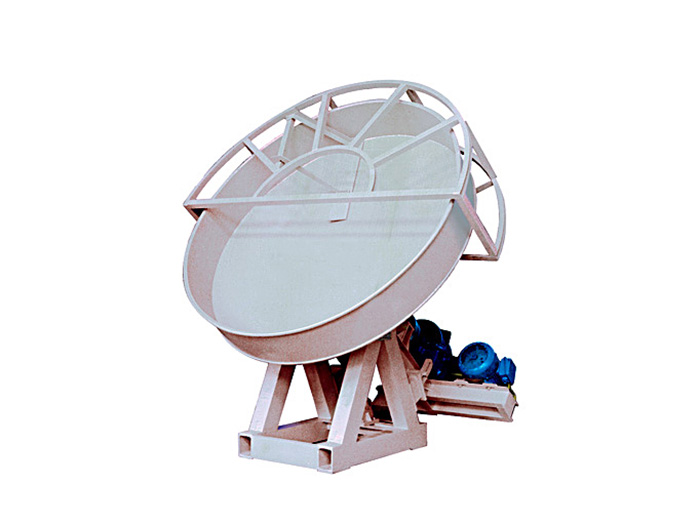

HCL22-HCL60 Disc Granulator

HCL22-HCL60 Disc Granulator 2018-6-5 本文被閱讀 1323 次
